Brief Introductions:

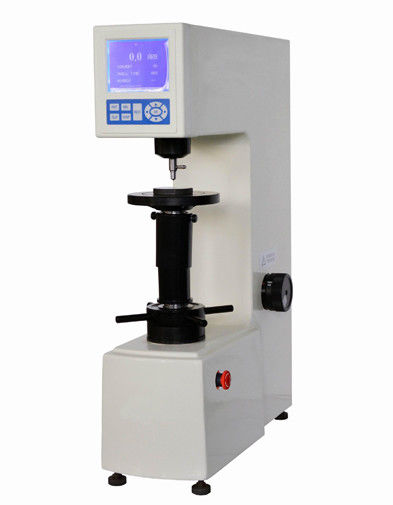

iRock-432D Digital Rockwell hardness tester equips with a newly-designed large displaying screen with good reliability, excellent operation and easy watching. It can show and set the present scale, test force, test indenter, dwell time and hardness conversion. The main functions as follows: 1, Support all the Rockwell scales; 2, Support Hardness Conversion; 3, Test results can be saved and printed; 4, Automatically calculate the maximum, minimum and average value; 5, With RS232 interface for data transferring to computer.
Application Range:
Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc.
Technical Specifications
Model |
iRock-432D |
Intial test force |
10Kgf(98.07N) |
Total Testing Force |
60Kgf (588N), 100Kgf (980N), 150Kgf (1471N) |
Indenter |
Diamond Rockwell Indenter, 1.588mmBall Indenter |
Loading Method |
Automatic (Loading/Dwell/Unloading) |
Hardness Reading |
LCD Screen Display |
Test Scale |
HRA, HRD, HRC, HRF, HRB, HRG, HRH, HRE, HRK, HRL, HRM, HRP, HRR, HRS, HRV |
Conversion Scale |
HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N |
Data Output |
Built-in Printer, RS232 Interface |
Resolution |
0.1HR |
Dwell Time |
0-60s |
Max. Height of Specimen |
175mm |
Throat |
165mm |
Power Supply |
AC220V/50Hz/1Ph, AC110V/60Hz/1Ph |
Execute Standard |
ISO 6508, ASTM E-18, JIS Z2245, GB/T 230.2 |
Dimension (L*W*H) |
520x215x700mm, Packing Dimension: 650x370x950mm |
Gross/Net Weight |
100/78Kg |
Standard delivery:
- Instrument Main unit
- Hardness block (60-70) HRC
- Hardness block (20-30) HRC
- Hardness block (80-100) HRB
- Large Plane Test Table
- Middle Plane Test Table
- V-shaped Test Table
- Power Cable
- Level
- Screw Driver
- Anti-dust Cover
- Diamond Rockwell Indenter
- Weight A, B, C (3PCS)
- Fuse 2A (2PCS)
- Horizontal Regulating Screw (4PCS)
- Spanner
- Usage Instruction Manual
|
|
