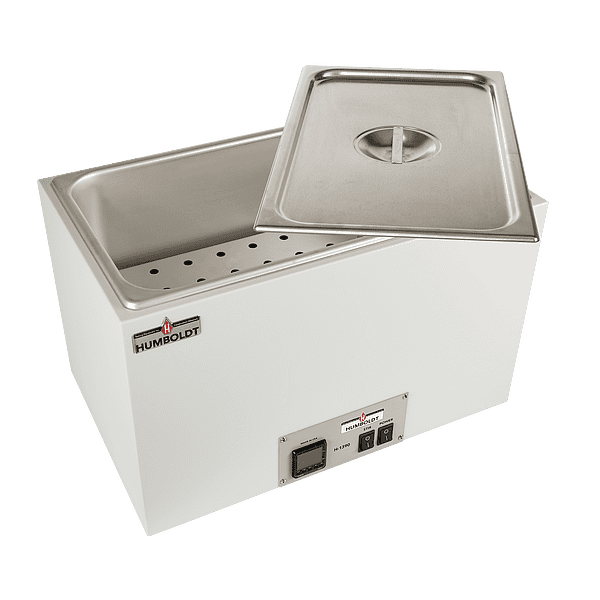

Deluxe Water Bath

M&L Testing Equipment water baths feature a microprocessor-based digital controller for precise temperature control throughout their temperature range of ambient to 180°F (82°C) at an accuracy of +/-0.1% of input span. The dual digital display simultaneously shows the set point and the process temperature at a glance.

M&L Testing Equipment water baths are fully insulated to help maintain constant temperatures easily. Models H-1390 and H-1392 can accommodate (12) 4″ diameter or (3) 6″ diameter Marshall specimens at a time. And the model H-1394 can accommodate (16) 4″ and (9) 6″ diameter Marshall specimens at a time. All models include a stainless steel shelf, which supports specimens while allowing 2″ of free circulating water above and below specimens. Models H-1390 and H-1394 also utilize a magnetic stirring bar to induce water flow within the bath and ensure a uniform temperature is maintained. Model H-1392 does not have a magnetic stirring bar. All exposed areas are stainless steel and the front control panel is both water and corrosion resistant.

Microprocessor-based control for precise temperatures throughout the range. Includes magnetic circulator, ensuring constant water temperature, and, a stainless steel shelf, which stands 2″ (51mm) above the bottom of the unit for free circulation of water above and below test samples. Volume is 7.76 gallons (29.40L) and dimensions are: ID: 19.5″ W x 11.5″ D x 8″ H (495.3 x 292.1 x 203.2mm).

For more detailed information about Marshall Testing, please visit our Asphalt Marshall Testing landing page.
