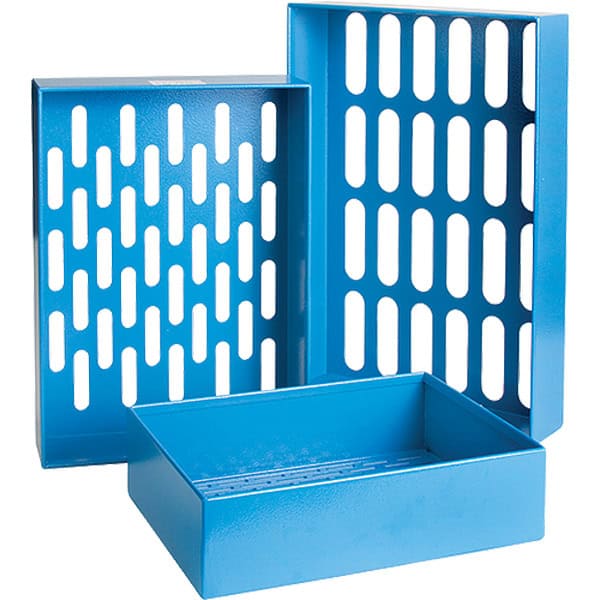

Complete set of flakiness sieves. These sieves are used to determine if aggregate is flaky. Aggregate is considered flaky if its thickness is less than 0.6 of nominal size. Set is comprised of these sieves:
H-4392.4.9
H-4392.7.2
H-4392.10.2
H-4392.14.4
H-4392.19.7
H-4392.26.3
H-4392.33.9
Sieves can be ordered separately as well.
| Part Number & Name |
| H-4392 Flakiness Sieves Set |
| H-4392.10.2 Flakiness Sieve: Width: 10.2mm; Length: 50mm; Passing: 20mm; Retained: 14mm |
| H-4392.14.4 Flakiness Sieve Width: 14.4mm; Length: 60mm; Passing: 28mm; Retained: 20mm |
| H-4392.19.7 Flakiness Sieve Width: 19.7mm; Length: 80mm; Passing: 37.5mm; Retained: 28mm |
| H-4392.4.9 Flakiness Sieve: Width: 4.9mm; Length: 30mm; Passing: 10mm; Retained: 6.3mm |
| H-4392.7.2 Flakiness Sieve Width: 7.2mm; Length: 40mm; Passing: 14mm; Retained: 10mm |
| H-4392.26.3 Flakiness Sieve: Width: 26.3mm; Length: 90mm; Passing: 50mm; Retained: 37.5mm |
| H-4392.33.9 Flakiness Sieve: Width: 33.9mm; Length: 100mm; Passing: 63mm; Retained: 50mm |
| Standards |
| BS 812 |
