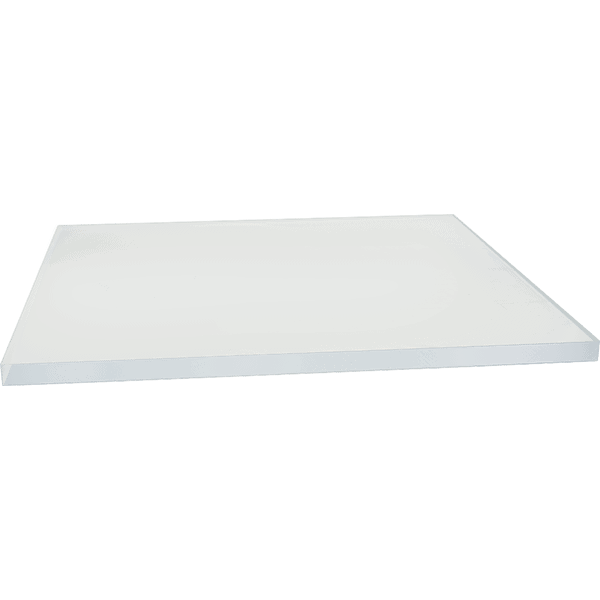

Clear .625″ (15.8mm) thick, acrylic plates used to strike off surface of unit weight measure samples. Use a plate that is 2″ (50.8mm) larger than the diameter of the unit weight measure.
NOTE: Use 2″ larger plate than the diameter of the unit weight measure.
| Part Number & Name |
| H-3669.1P Strike-off Plates for Unit Weight Measures Unit Weight Strike-off Plate: 8″ sq. (203mm sq.) |
| H-3669.4P Strike-off Plates for Unit Weight Measures Unit Weight Strike-off Plate: 10″ sq. (254mm sq.) |
| H-3669.2P Strike-off Plates for Unit Weight Measures Unit Weight Strike-off Plate: 12″ sq. (305mm sq.) |
| H-3669.3P Strike-off Plates for Unit Weight Measures Unit Weight Strike-off Plate: 16″ sq. (406mm sq.) |
| Standards |
| ASTM D6023 |
| ASTM C138 |
| ASTM C29 |
| AASHTO T19 |
| AASHTO T121 |
| AASHTO T158 |
