Description

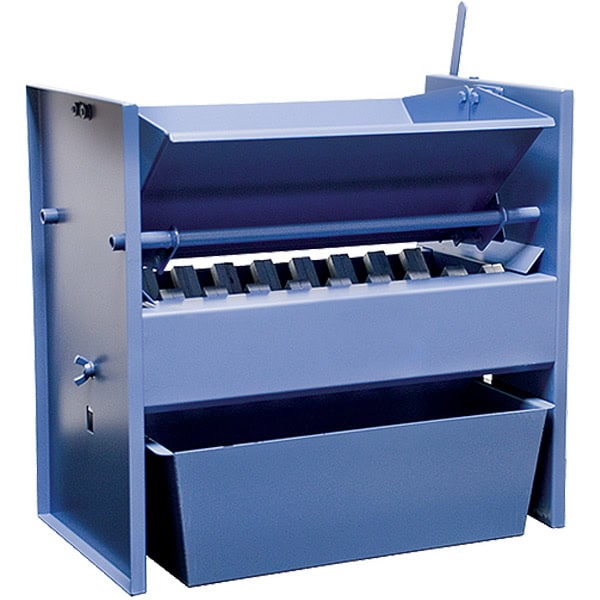

The H-4289 universal splitter is compact and more durable than conventional portable splitters. Lightweight with ample hopper capacity of 0.55 ft3 (15.6 liters) for materials up to 2″ (51mm). It is convenient for use from floor or bench-top positions. This splitter provides accurate and representative samples for a wide range of materials.
Hopper Capacity: 0.55ft3 (15.6L)
Chute Bar Width: 0.5″ (13mm)
Chute Bar Amount: 36
Chute Slope: 45°
Dimensions: 22″ x 14.5″ x 20.5″ (559 x 368 x 521mm)
Specs
Number of Chutes (openings)
Number of Chutes
(openings) | Model | Chute Width – inches |
|---|
| .125 | .25 | .375 | .5 | .75 | 1 | 1.5 | 2 | 3 | 4 | 6 |
|---|
| H-4291 | 48 | 24 | 16 | 12 | 8 | 6 | 4 | – | – | – | – |
| H-4290 | – | 48 | – | 24 | 16 | 12 | 8 | 6 | 4 | – | – |
| H-4289 | – | – | – | 36 | – | 18 | 12 | – | – | – | – |
| H-4288 | – | – | – | 48 | – | 24 | 16 | 12 | 8 | 6 | 4 |
| H-4293 | – | – | – | 48 | – | 24 | 16 | 12 | 8 | 6 | 4 |
Hopper
Capacity in3/ft3 (liters) | Chute Bar
Width | Chute Bar
Amount | Chute
Slope | Dimensions
L x W x H inches (mm) | Gilson
# | Model | Pans
Replacements |
|---|
| 104 in3 (1.7) | .125″ (3mm) | 48 | 60° | 9.5 x 8.5 x 13.5 (214 x 216 x 343) | SP-3 | H-4291 | H-4291.1 |
| .28 ft3 (7.9) | .25″ (6mm) | 48 | 60° | 15.5 x 12.5 x 17.5 (394 x 318 x 445) | SP-2.5 | H-4290 | H-4290.1 |
| 0.55 ft3 (15.6) | .5″ (13mm) | 36 | 45° | 22 x 14.5 x 20.5 (559 x 368 x 521) | SP-2 | H-4289 | H-4289.1 |
| 1.0 ft3 (28.3) | .5″ (13mm) | 48 | 45° | 29 x 19 x 39 (737 x 483 x 991) | SP-1 | H-4288 | H-4288.2 |
| 1.0 ft3 (28.3) | .5″ (13mm) | 10 Fixed | 60° | 29 x 19 x 39 (737 x 483 x 991) | SP-1C | H-4288FC | H-4288.2 |
| 1.0 ft3 (28.3) | 1″ (25mm) | 48 | 60° | 29 x 19 x 39 (737 x 483 x 991) | SP-10 | H-4293 | H-4288.2 |
